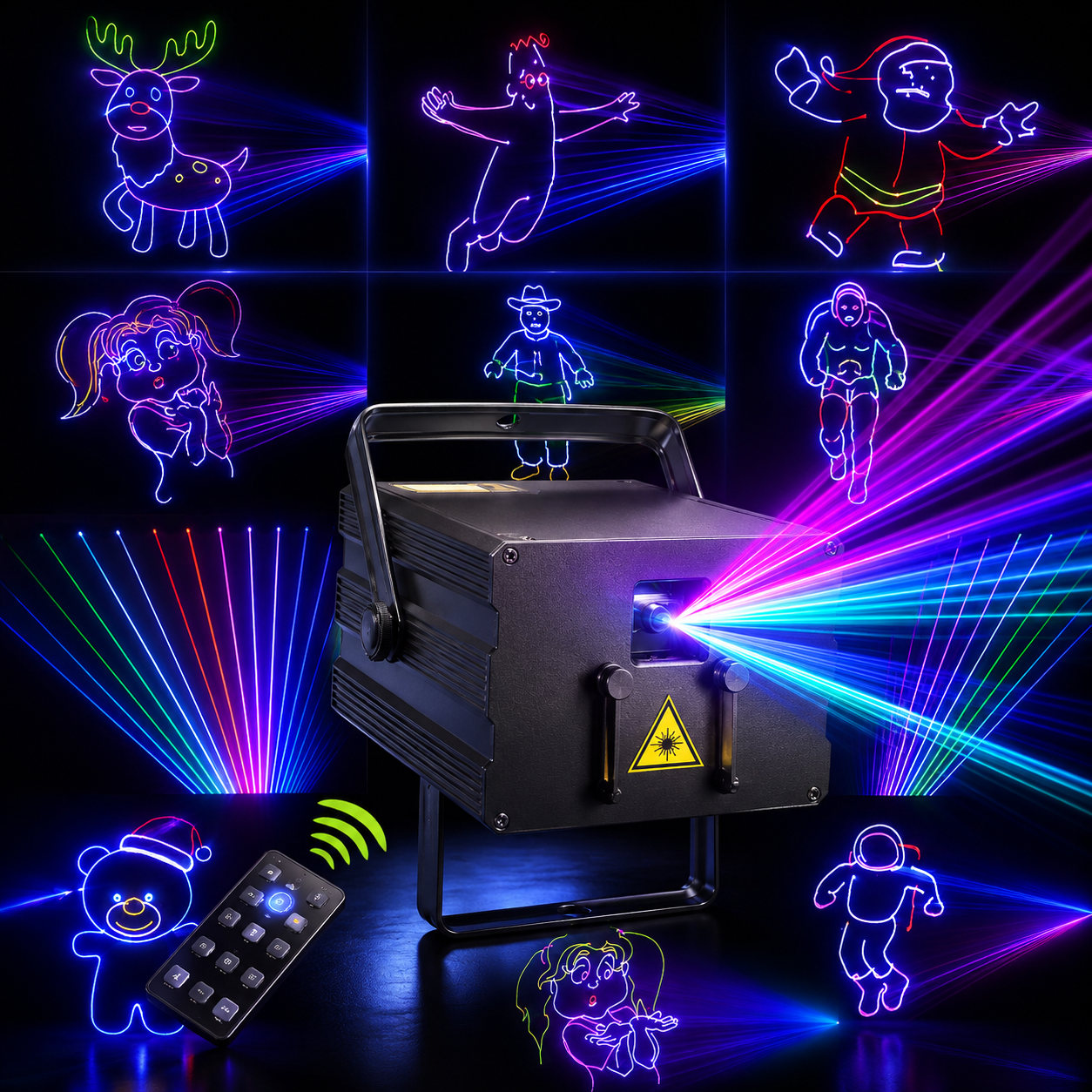

iOS/Android APP IP65 Animation Laser Light-A3

Sale price$249.90 USD Regular price$277.90 USD
Save 10%
Laser Power:500mw
Waterproof level:Not waterproof
Plug:US Plug
Quantity:

Contact Us

Hi,

Thanks for visiting! We love to hear from you and are always here to help.

If you have any questions and they are not answered in our FAQ, please contact us at service@ktvlights.com. We usually respond within 1 business day, please remember to check your spam!

Customer Service: service@ktvlights.com

Business and Cooperation Inquiries: service@ktvlights.com

Product features:

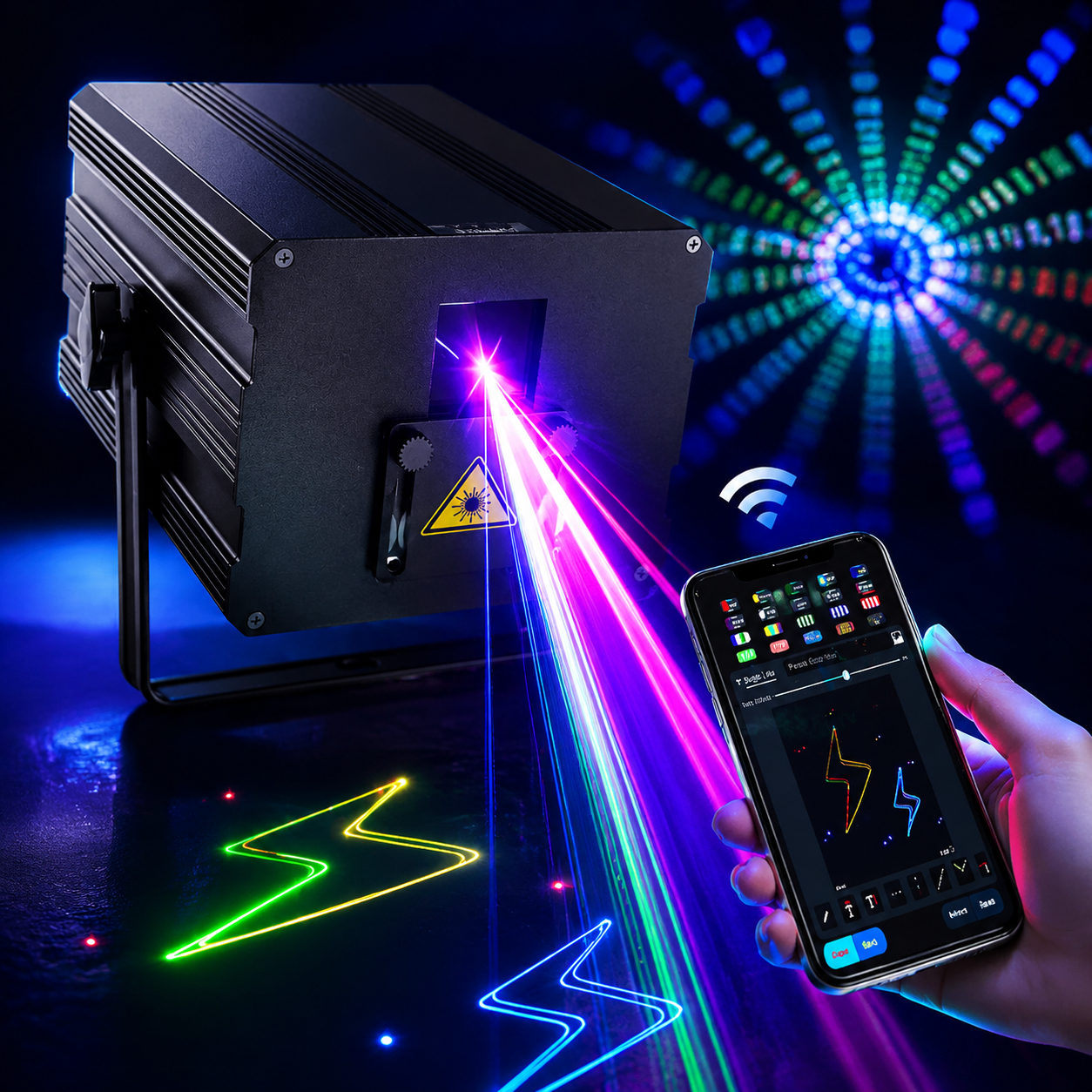

  • 1. Support IOS/Android system APP control
  • 2. Support multiple languages
  • 3. Support editing text (100 characters), animation, LOGO.
  • 4. Support uploading animation patterns
  • 5. Personalized programming, can support 20 scene editing
  • 6. Built-in program playback

Product power recommendation:

  • All product functions are the same as built-in mode, just select the power.
  • App editing text animation video:
  • Recommended 500mw-5w, video machine is 2w power.
  • Time tunnel, wave and other effects:
  • Recommended 3w-5w (indoor), 5w-10w (outdoor), 10w-20w (large event),Video machine is 10w power

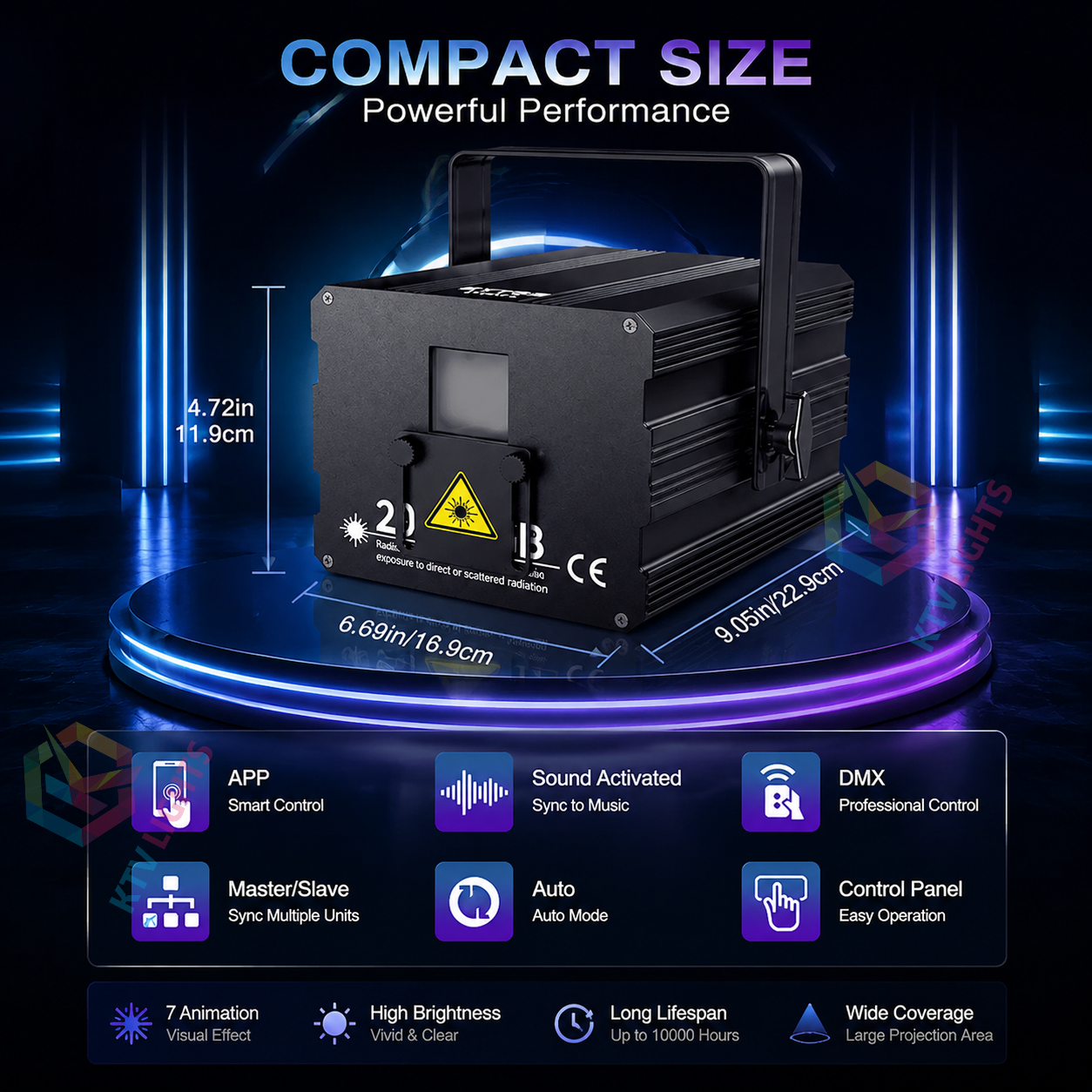

Product specifications:

  • Power consumption: 60-500W
  • Power supply: AC110v-240V50/60Hz
  • Laser power: 1w-20w (optional)
  • Waterproof grade: IP65 waterproof (optional)
  • Control mode: APP control, DMX512, voice control, self-propelled, ILDA (power above 10w)
  • Scanning system: galvanometer scanning system
  • Scanning rate: 1w-5w 20K, 6w-10w 26K, 15w-20w 33K (customizable)
  • Warm-up time: 2~8 minutes
  • DMX control: 16-27 channel control
  • Scanning angle: 60º standard scanning unit and scanning drive circuit
  • Divergence angle: <1.8mrad
  • Detailed parameters: Please contact customer service to receive, service@ktvlights.com

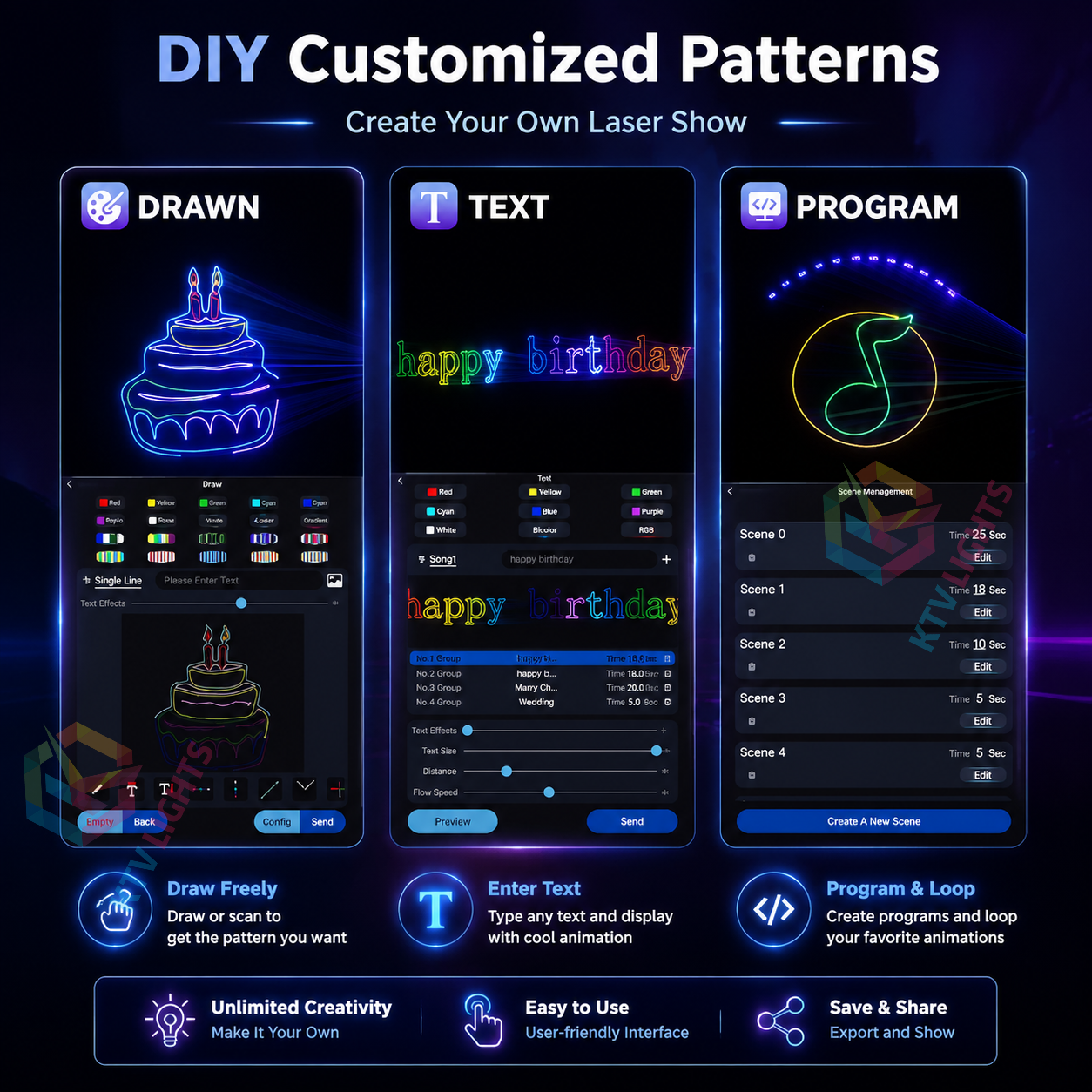

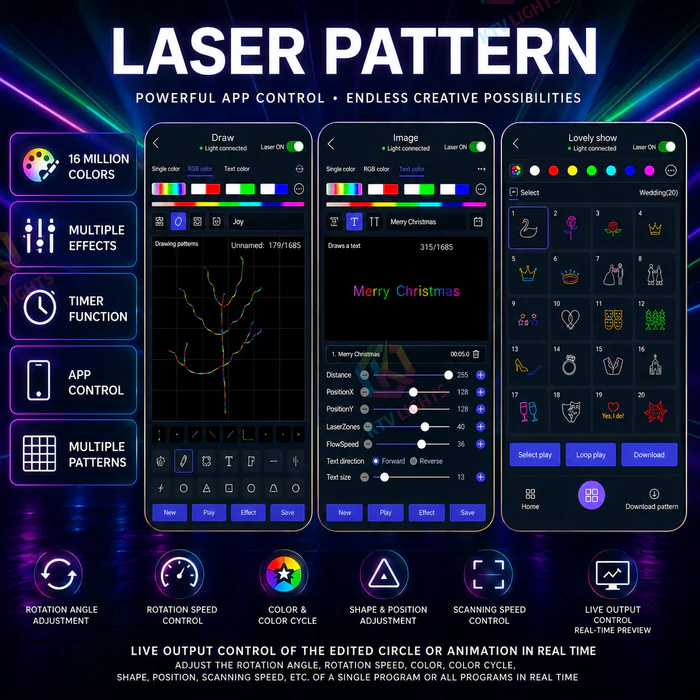

1.Introduction to the hand-drawn graffiti function
  • Click the hand-drawn graffiti menu in the main interface to enter. Here you can draw patterns manually, enter text, upload LOGO pictures or choose built-in.
Patterns to control the display effect of the device
  • A. Color selection: The upper part of the interface is the color selection area. Click different color buttons to select the color of the laser drawing.
  • B. Draw patterns: The middle part of the interface is the pattern control area. In this area, you can do the following operations.
  • C. Use logo pictures: It is recommended to use logo pictures with clear lines and simple patterns.
  • D. Pattern editing: Actions include X Y movement, stretching, color gradient, action gradient drawing, etc.
  • E. Graphic operation and parameter configuration: Click the configuration button to configure parameters, configure the size, rotation angle, flip, horizontal and vertical movement of the graphics, click the parameter to be configured on the left, slide up and down on the right to change the parameter value, and click the OK button to save the parameters.

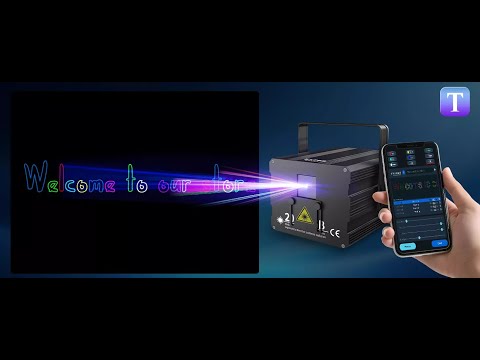

5. Text playback function introduction
  • Click the text playback menu in the main interface to enter, where you can set the text display effect, which supports up to 100 characters.
6. Personalized programming
  • Click the personalized programming menu in the main interface to enter. By editing the pattern of each scene,
  • let the laser light device play in sequence according to the programmed scene to meet your personalized needs.
  • It can support up to 20 scene editing, with one pattern for each scene.
7. Built-in program playback
  • A. Random playback: All programs are played randomly
  • B. Line playback, animation playback, Christmas playback, outdoor program playback

APP function introduction
1. Download APP

  • 1.APPDownloadaddressdownloadURL:https://www.lanzouh.com/s/lightelf.(copytheURLtothemobilebrowsertodownload)
  • 2.Log in to Google Play Store and search for "LightElf" to install
  • 3.Apple APP, search for LightElf in Apple's official App Store and install it.
2. Connect the laser light device
  • 1. Please connect the laser light device to the power supply before use

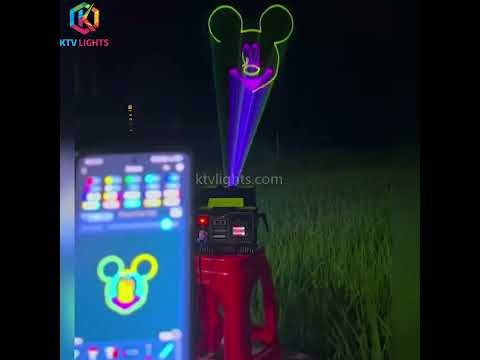

  • 2. Open the software and click "Click me to connect" on the main interface
  • 3. Select Laser_Light_xxxx in the Bluetooth list
  • 4. Successfully connected to the device
3.Software settings
  • 1. The address code, display range and XY related parameters of the laser light device can be set
  • 2. The menu language of the software can bechanged at the bottom
