Product Features:

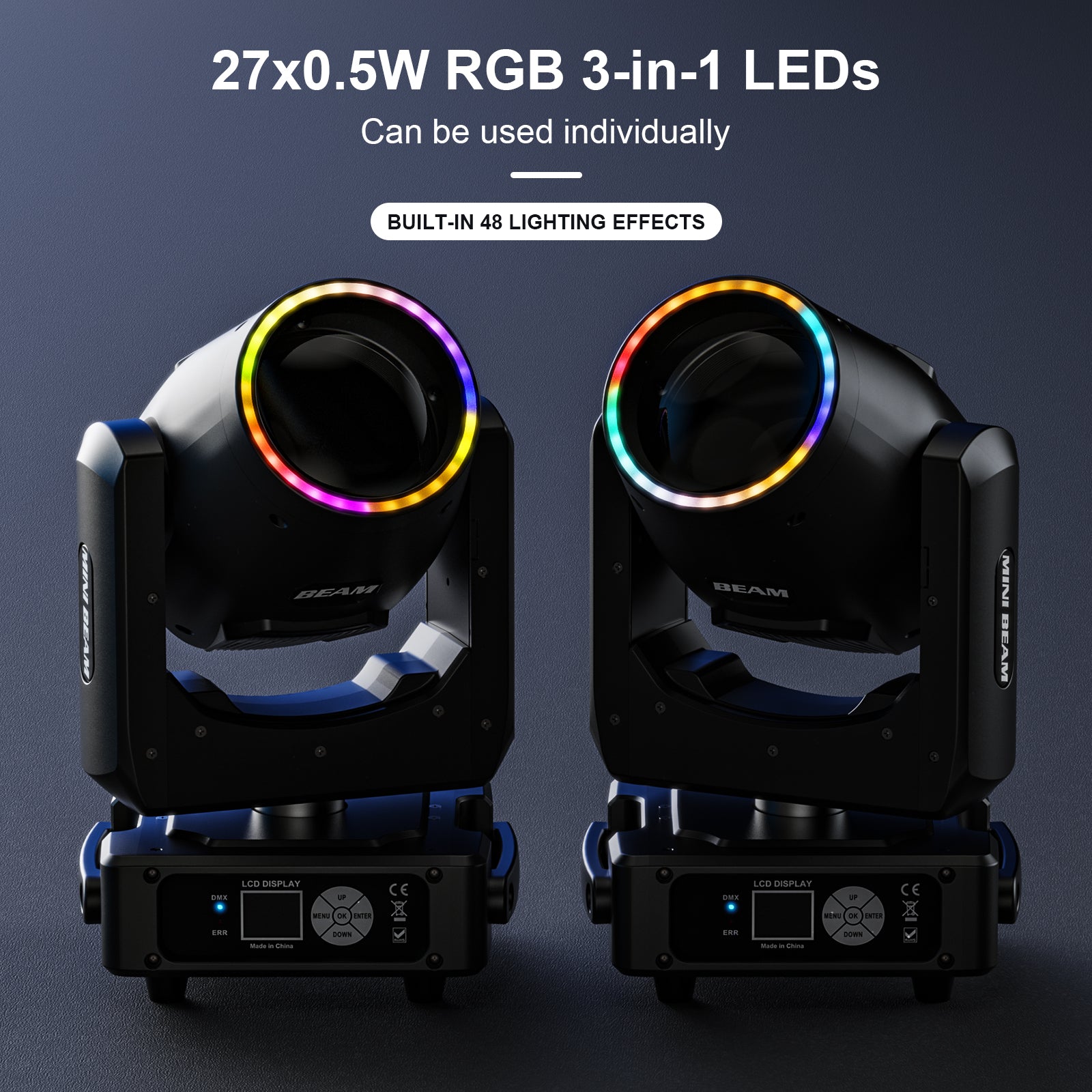

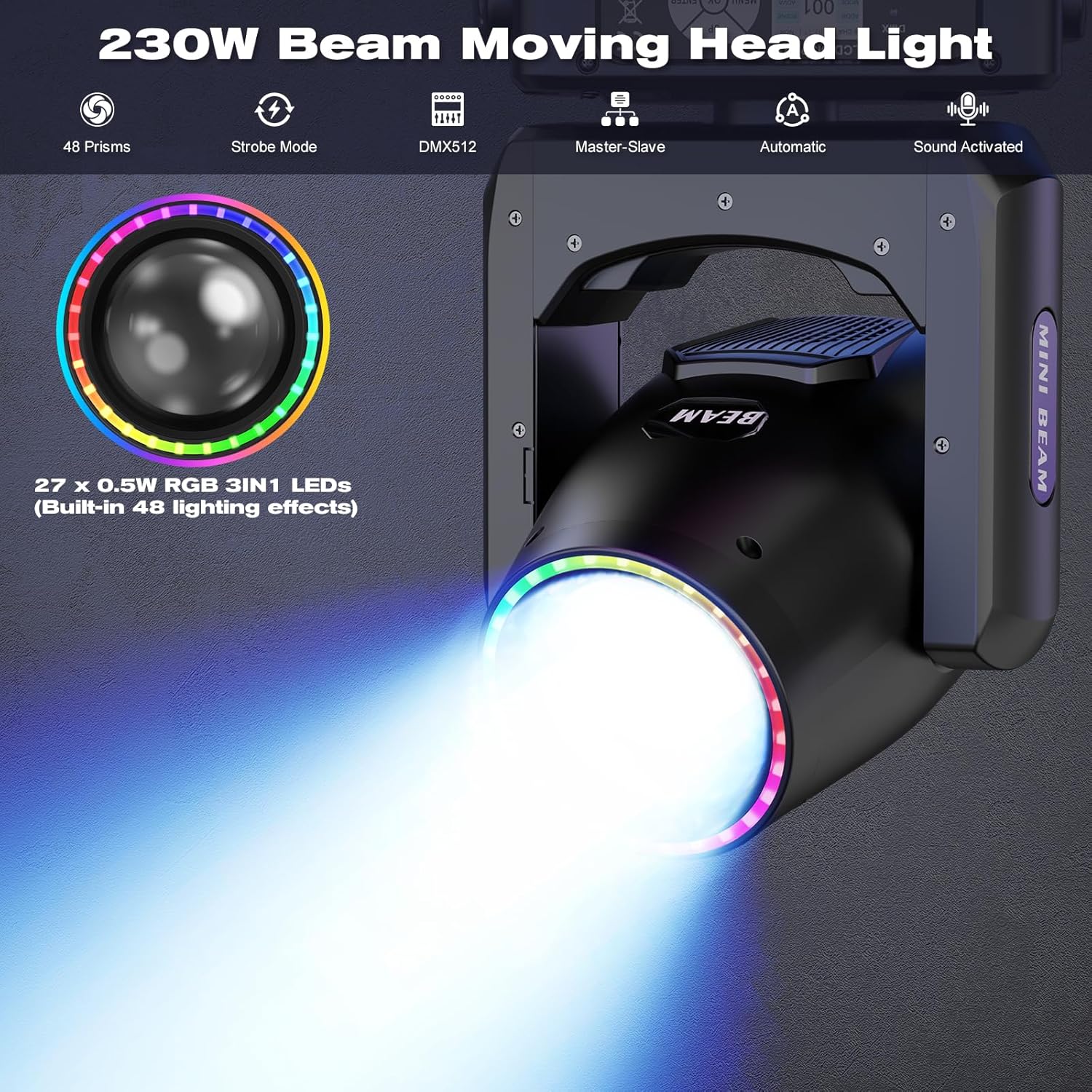

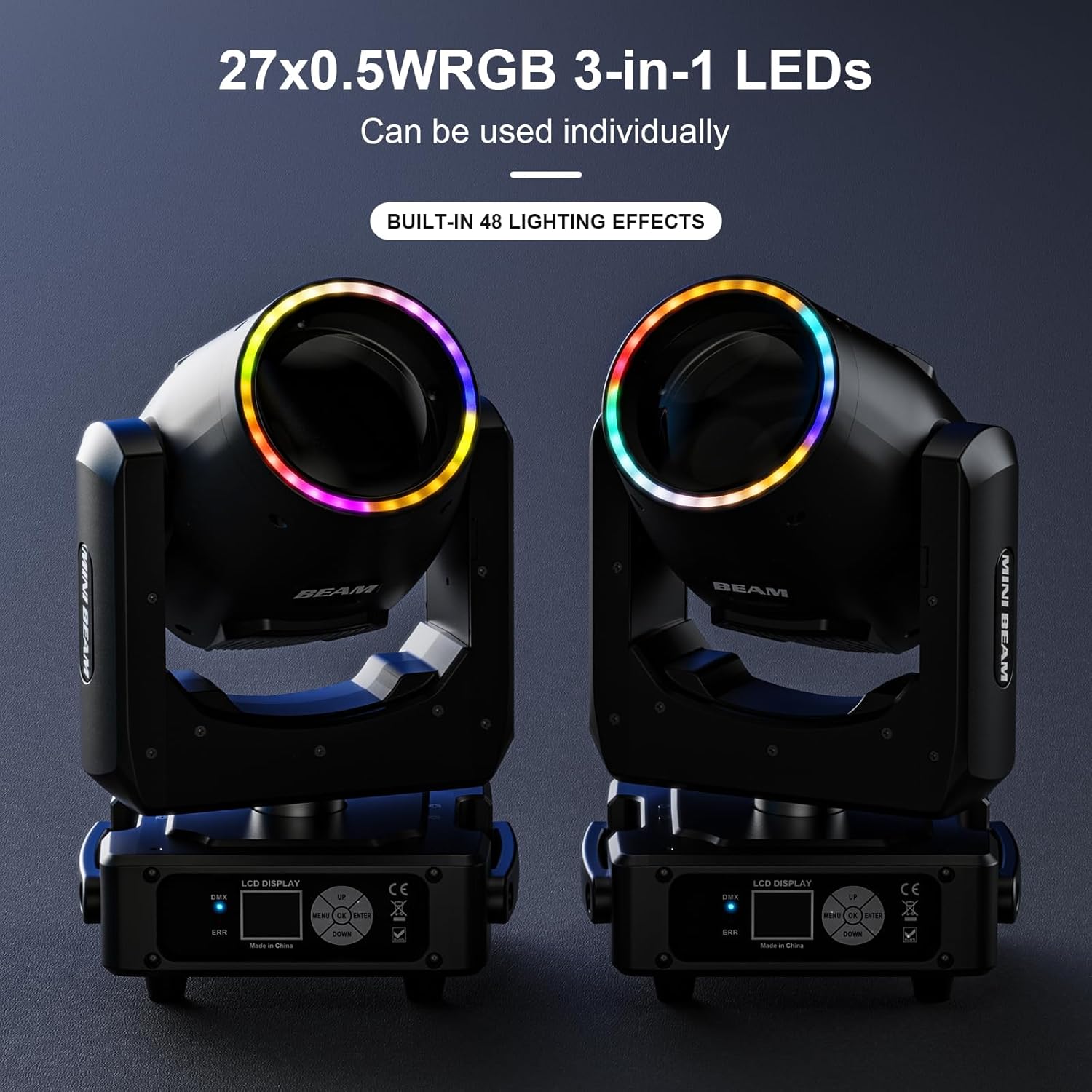

• Various Lighting Options: 27 built-in 0.5W RGB 3-in-1 LEDs can be used individually and offer 48 different lighting effects, which can be flexibly combined to increase the diversity of lighting performance.
• Special Optical Effects: Equipped with 48 prims for dynamic honeycomb prism and fog effects, creating a rainbow effect. The prisms can be positioned and rotated at any angle for precise electronic focusing, enhancing the visual effect.

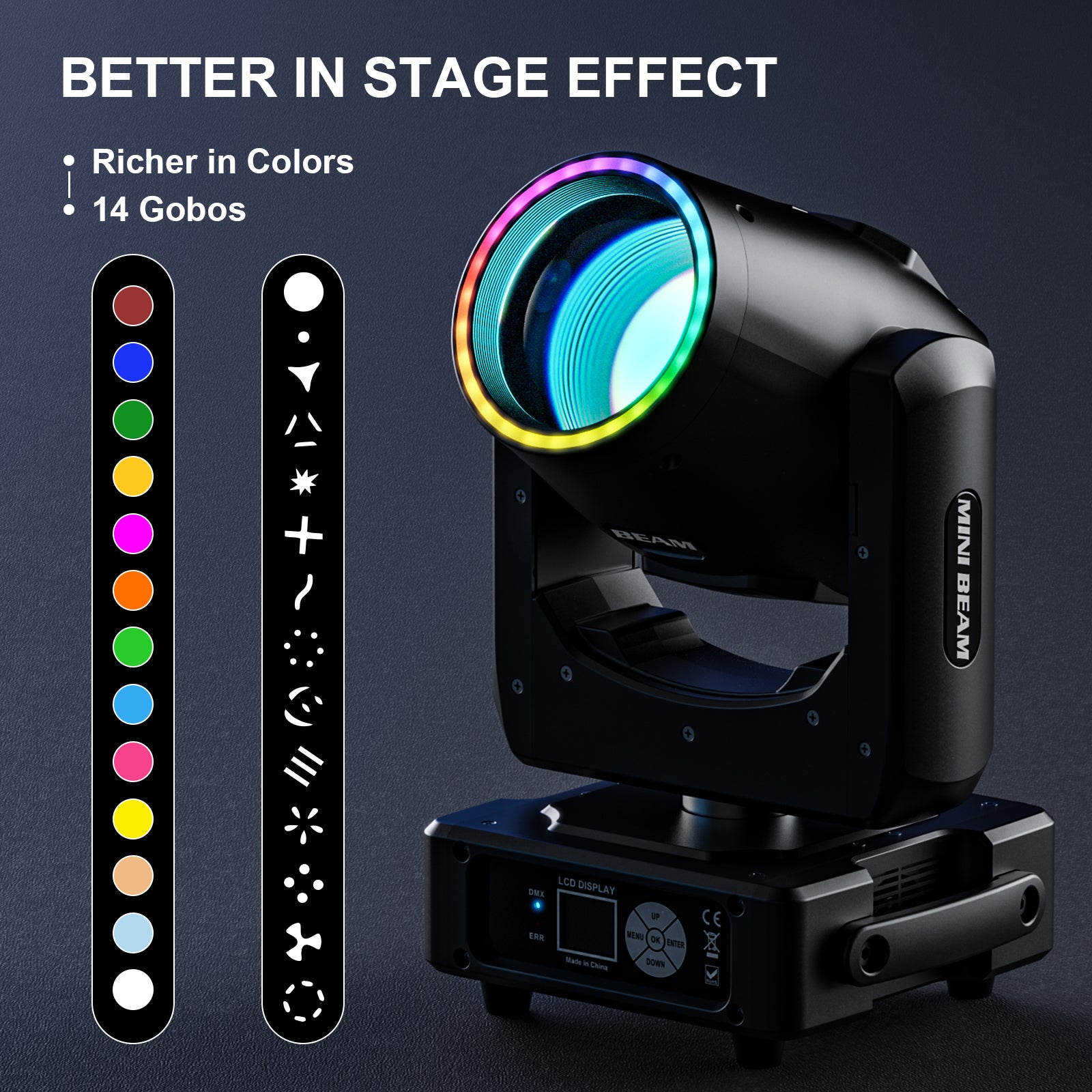

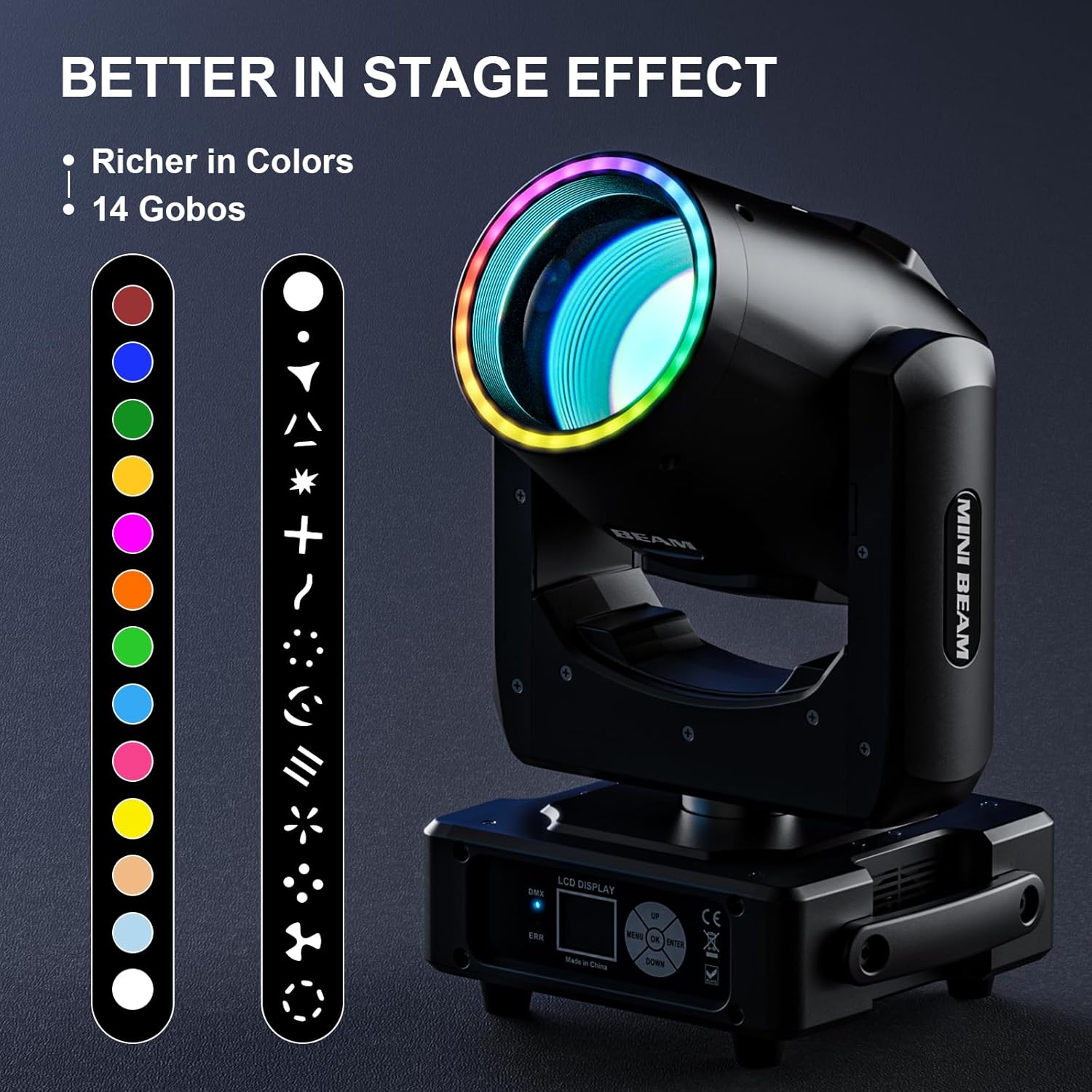

• Extensive Color Selection: 13 colors are available, plus a white light with a half-tone effect. The color change speed can be controlled to meet the color requirements of different scenarios.
• Flexible Pattern Function: 14 fixed patterns plus white light are available, supporting pattern flow and vibration effects. The pattern can be positioned at any angle and rotated clockwise and counterclockwise, increasing the diversity of visual performance.
• Advanced Control Features: Supports 18 standard DMX512 channels and RDM protocol, with bidirectional addressing. A built-in microphone enables voice control effects, and error indicators can detect sounds and provide prompts.

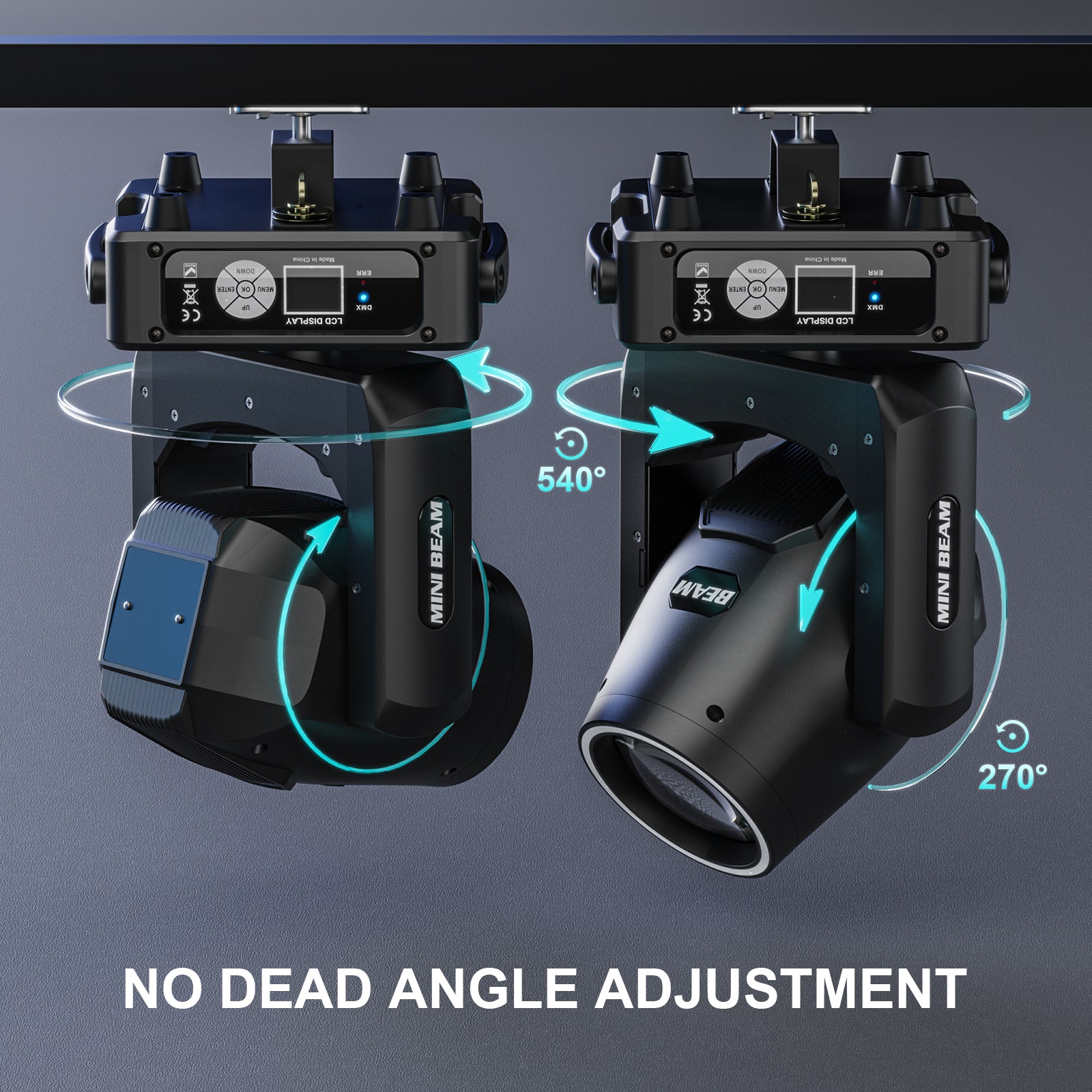

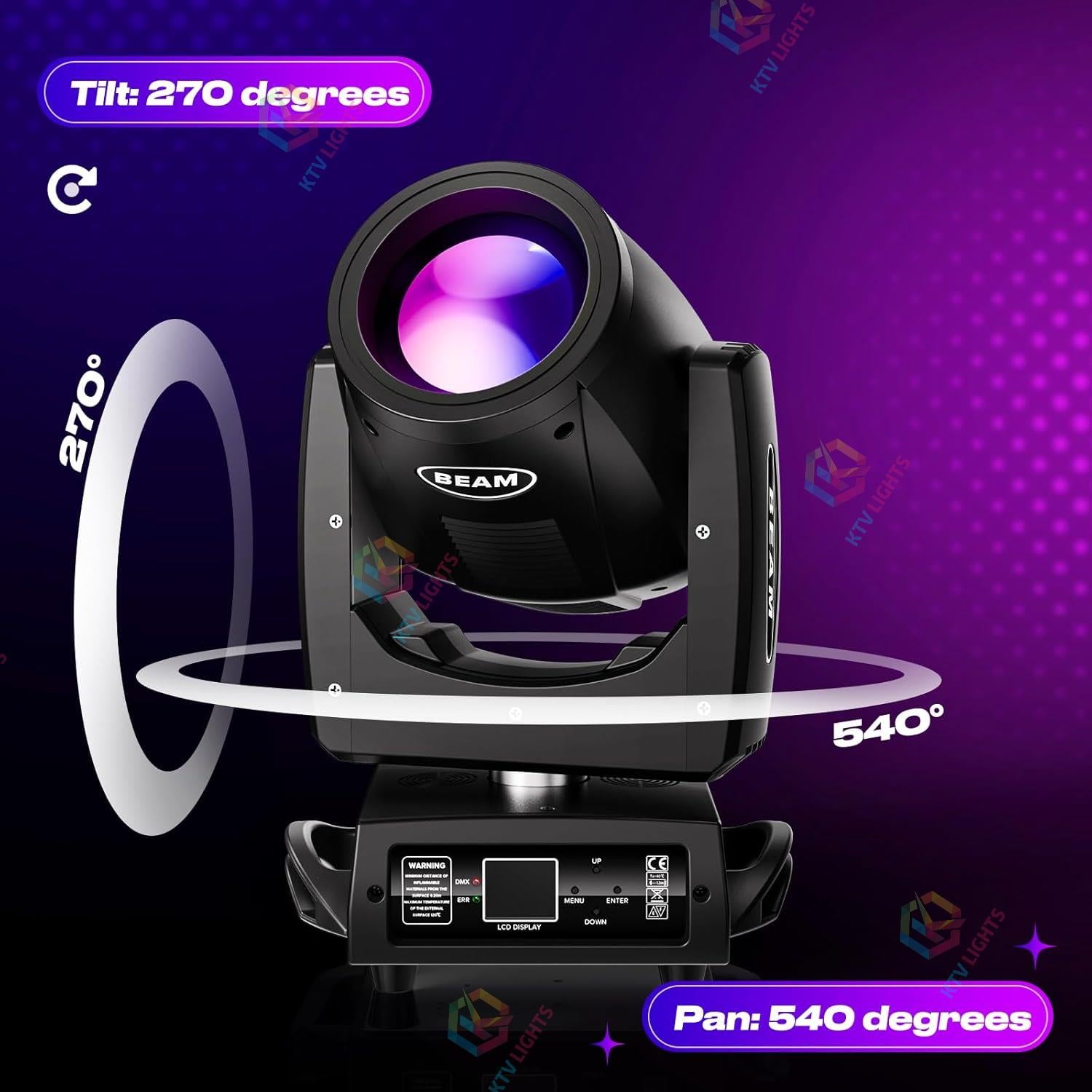

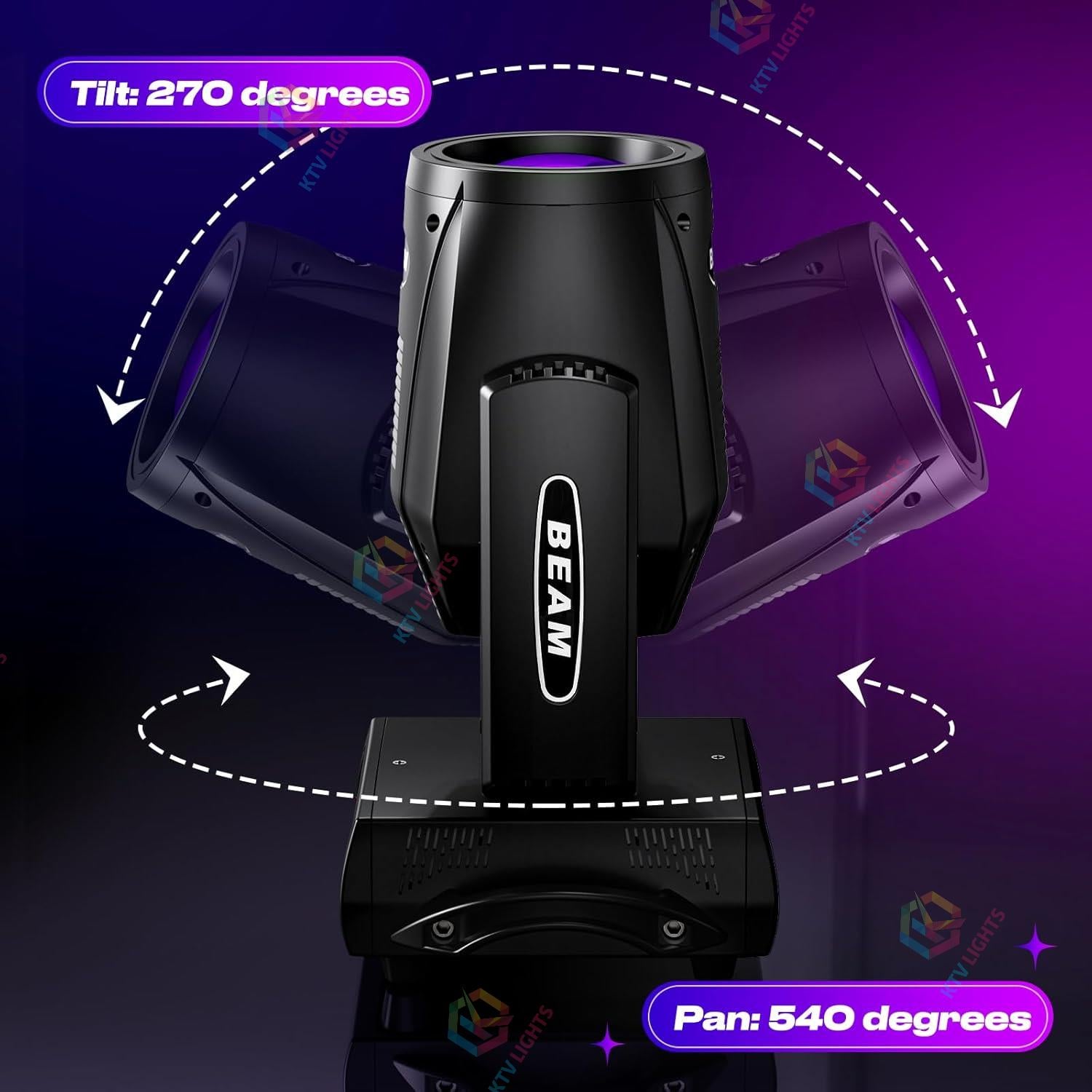

• Flexible Motion Control: The X-axis can reach up to 540°, and the Y-axis can reach up to 270°. Automatic error correction, as well as independent X/Y-axis speed adjustment and rotation fine-tuning, provide more flexible motion control.
• Error Display and Handling: When a machine fault occurs, the ERR indicator lights steadily, and the fault status is displayed in a status message, facilitating prompt action.

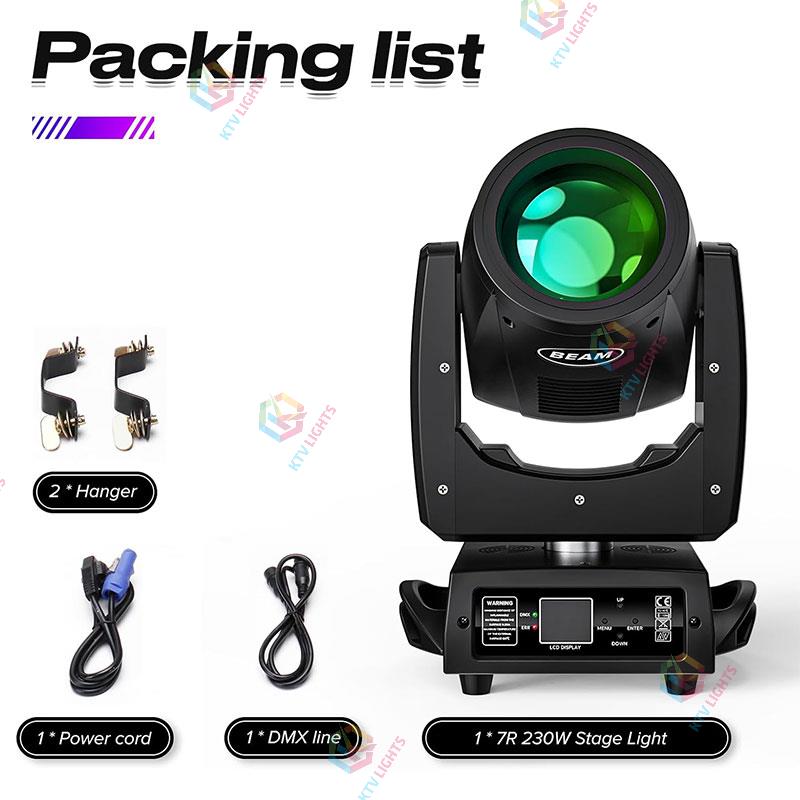

• Easy Installation: Each machine comes with two quick-lock lamp hook brackets for quick installation and removal, enhancing mobility and flexibility.

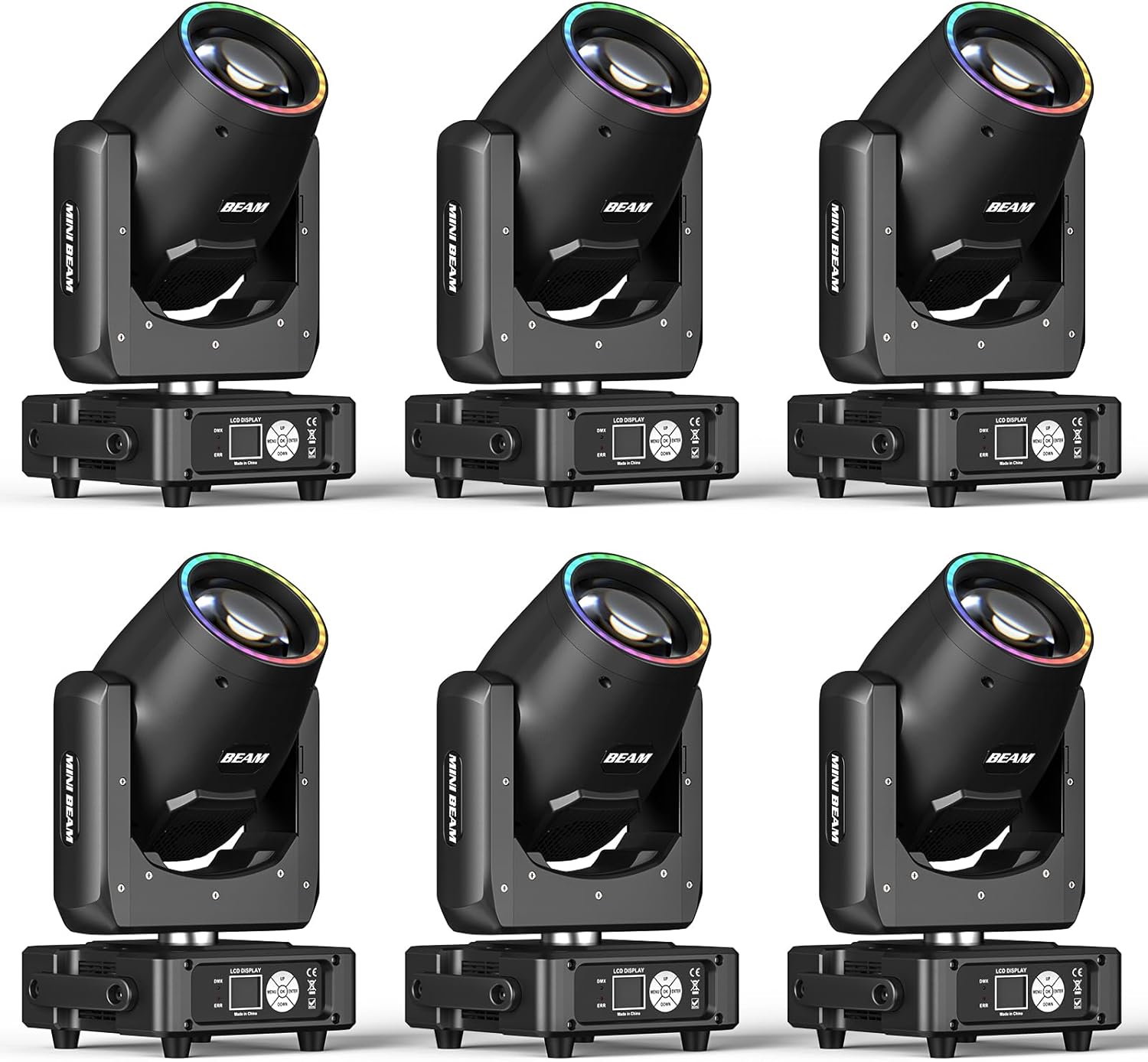

• Serial Connection: The ohm plug input/output interface supports serial connection, allowing for easy connection of 4-6 devices, reducing wiring costs and complexity while increasing system scalability and flexibility.

Specifications:

• Light Source: 1 white 230W + 27 0.5W RGBW LEDs (three and one)
  Color Temperature: 7000K-8000K
• Luminous Flux: 9800mm
• Average LED Lifespan: 50,000 hours
• Light Angle: 2.3°
• Effective Control Range: 5-30m
• Illumination: 230,000 Lux @ 10m
• Prism/Atomizer: 1 48-Minute Honeycomb Mirror
• Colorful Atomizer: Rainbow + Atomizer

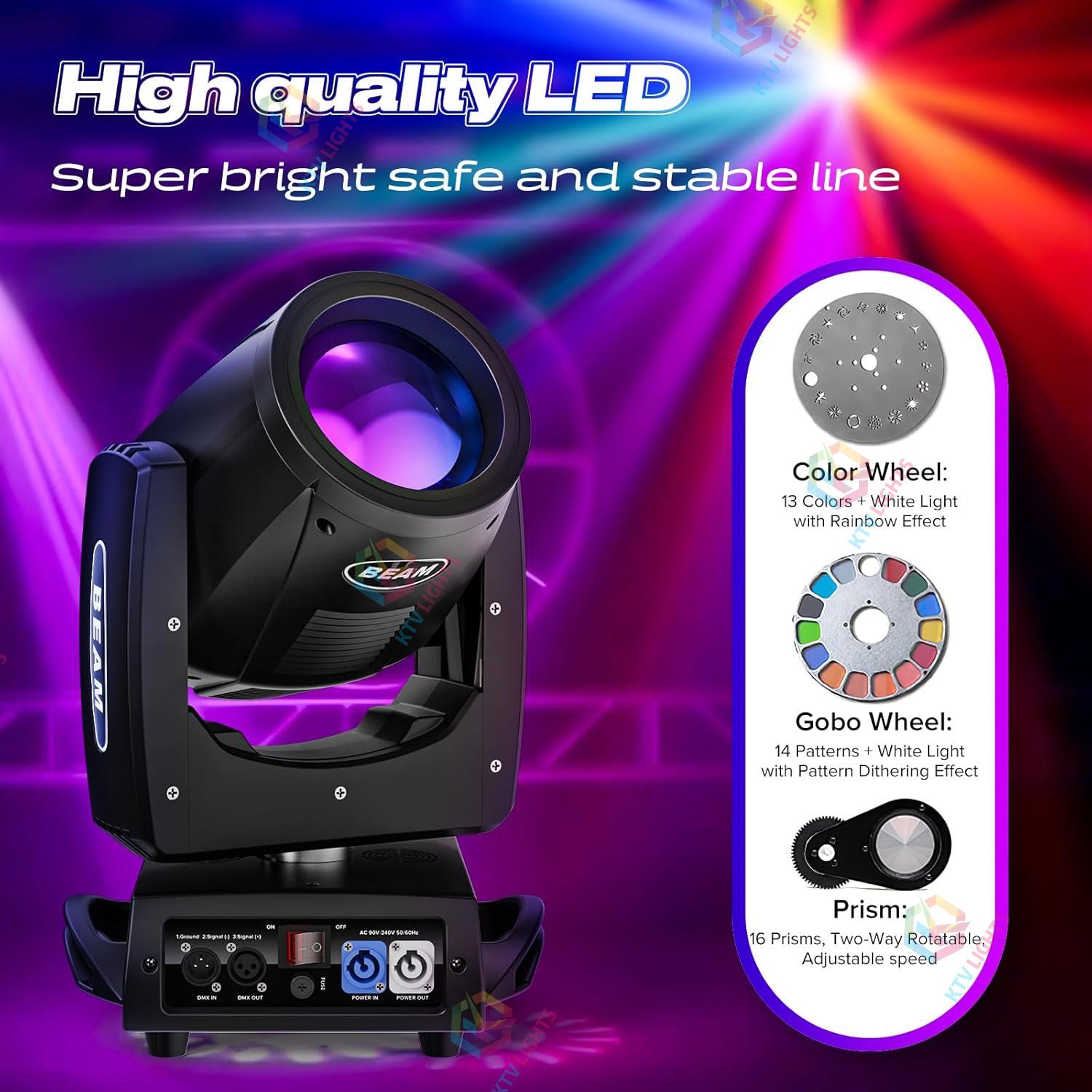

• Color Plates: 13 + 1 (13 color plates + 1 white light hole)
• Fixed Gobo Plates: 14 + 1 (14 patterns + 1 white light hole)

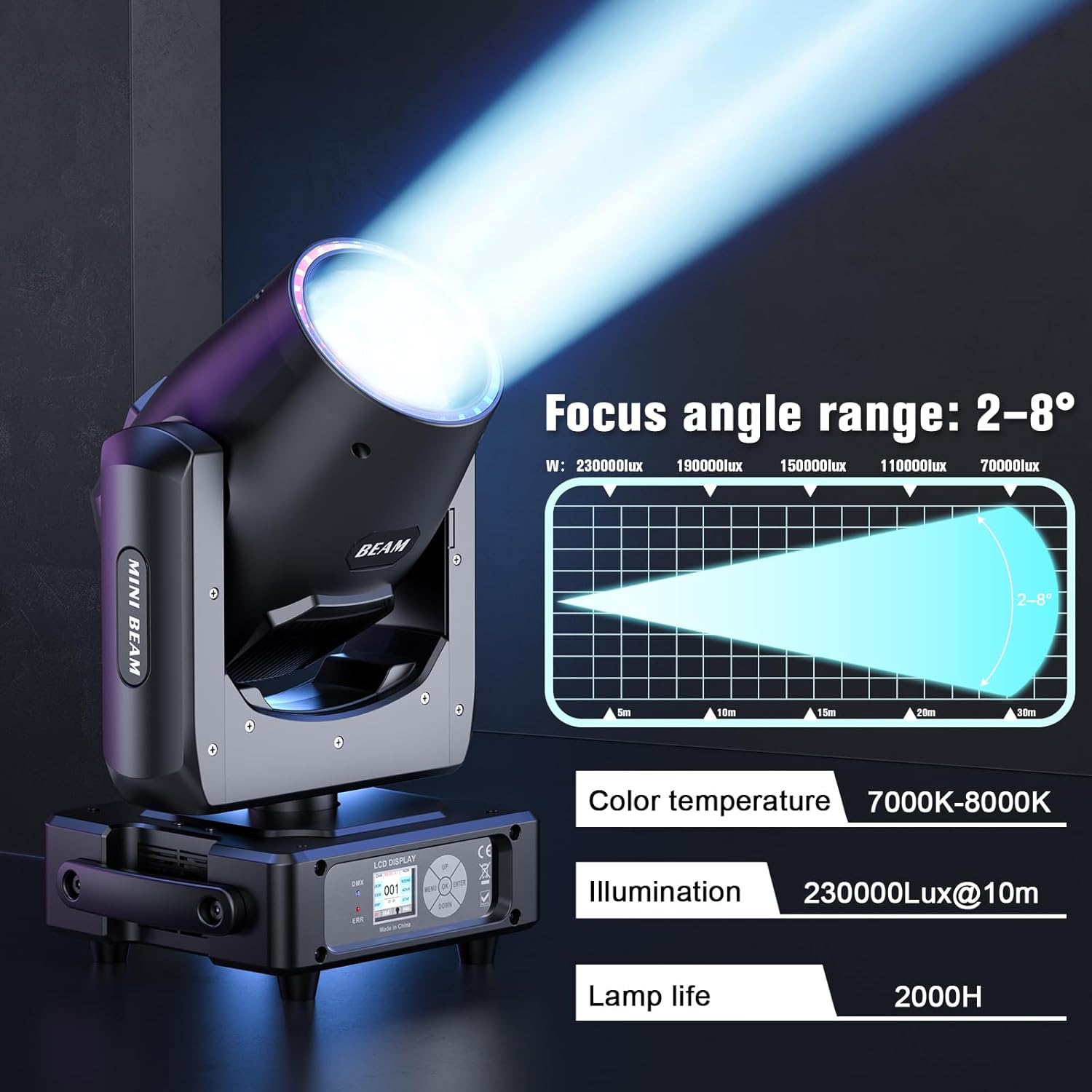

• Motorized Focus System: Focus Angle Range: 2-8°
• Multi-Speed Strobe Effect: 1-10Hz

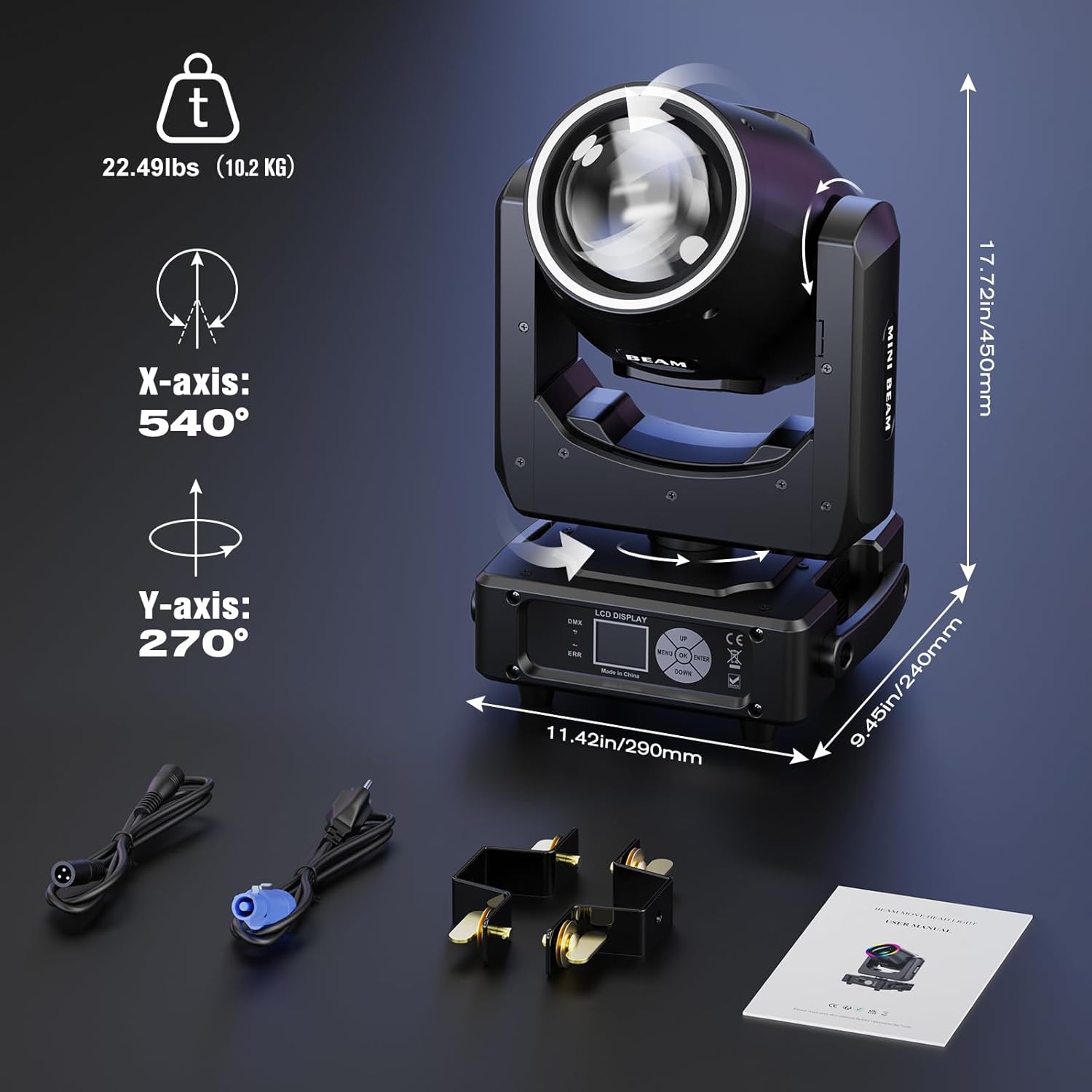

• X/Y axis: X-axis: 540°, Y-axis: 270°, automatic correction for X/Y position desynchronization
• X/Y axis: 16-bit precision scanning
• Lock: Horizontal/vertical lock
• Control protocol: Standard DMX512 protocol + RDM protocol
• Channel modes: Self-propelled, voice-activated, master-slave, DMX512
• Control channels: 18 channels
• Control panel: LCD display
• Input voltage range: AC110V-240V 50/60Hz
• Data connection: Triple XLR input/output
• Power outlet: Power connector input/output, straight socket
