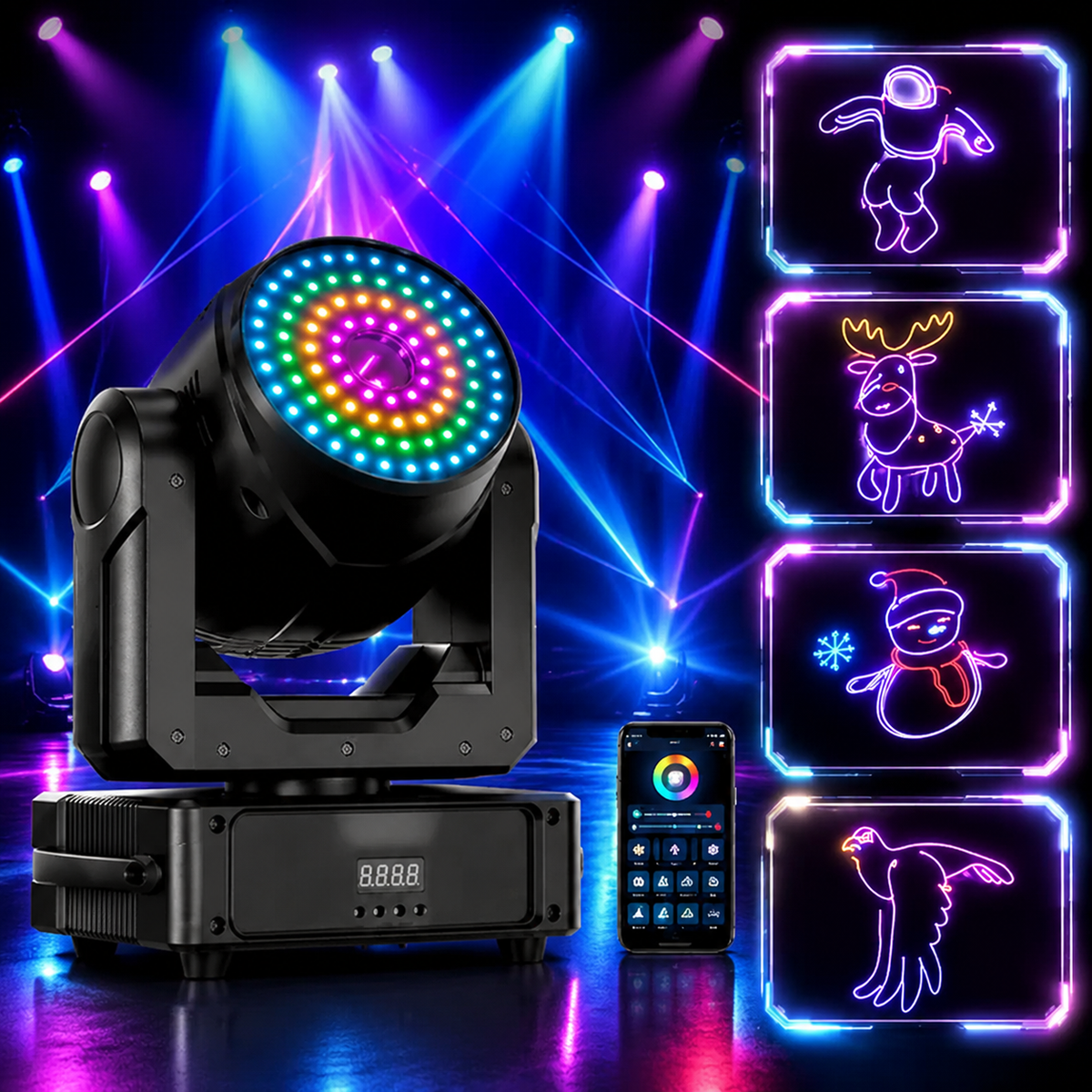

Product Features:

• Dynamic laser effects: 2W full-color RGB laser (red light 635nm, green light 520nm, blue light 445nm) with 15K high-speed galvanometer, can present clear and sharp animations, beams and text projections, which are perfect for creating an immersive atmosphere in entertainment venues.

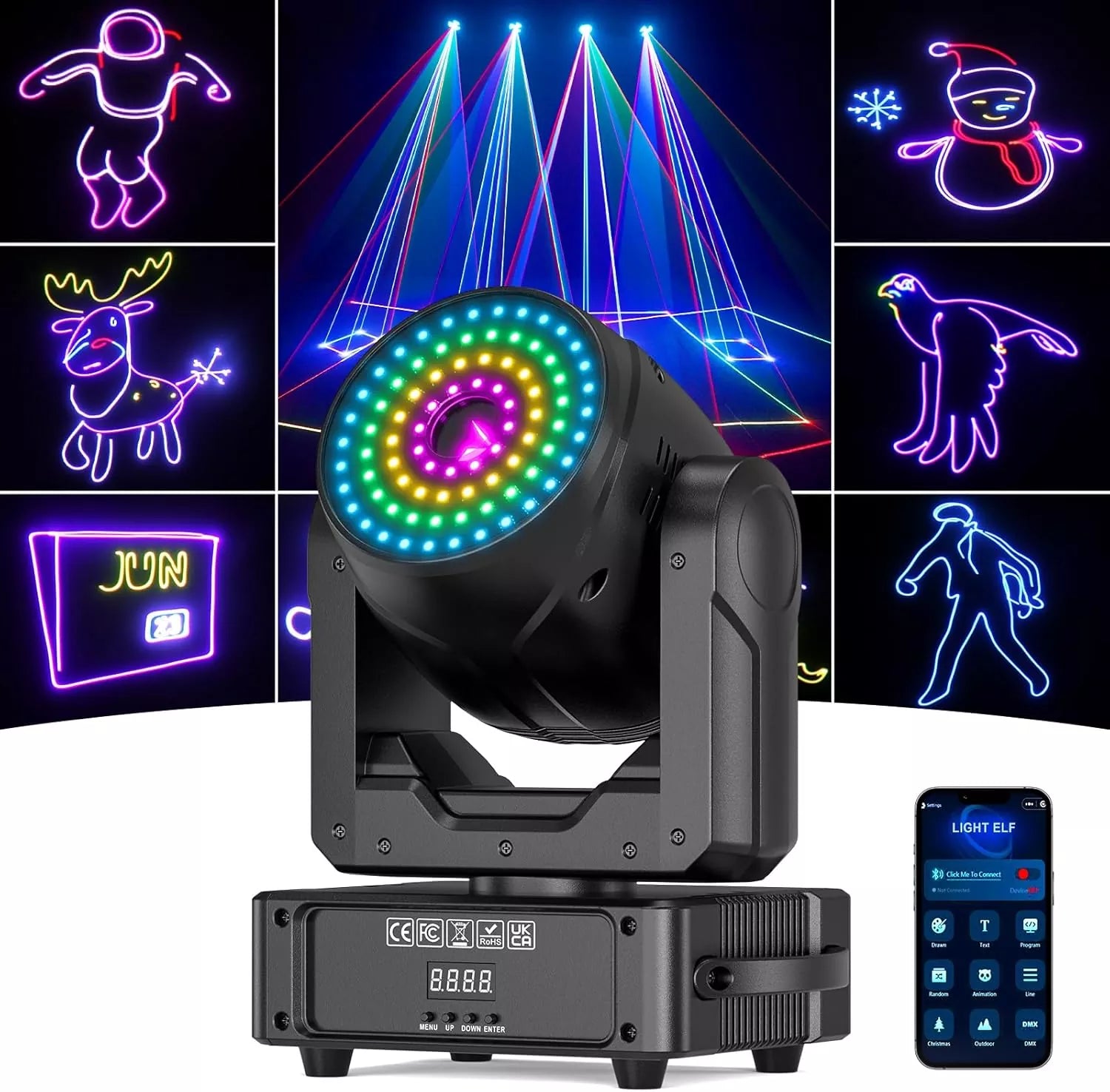

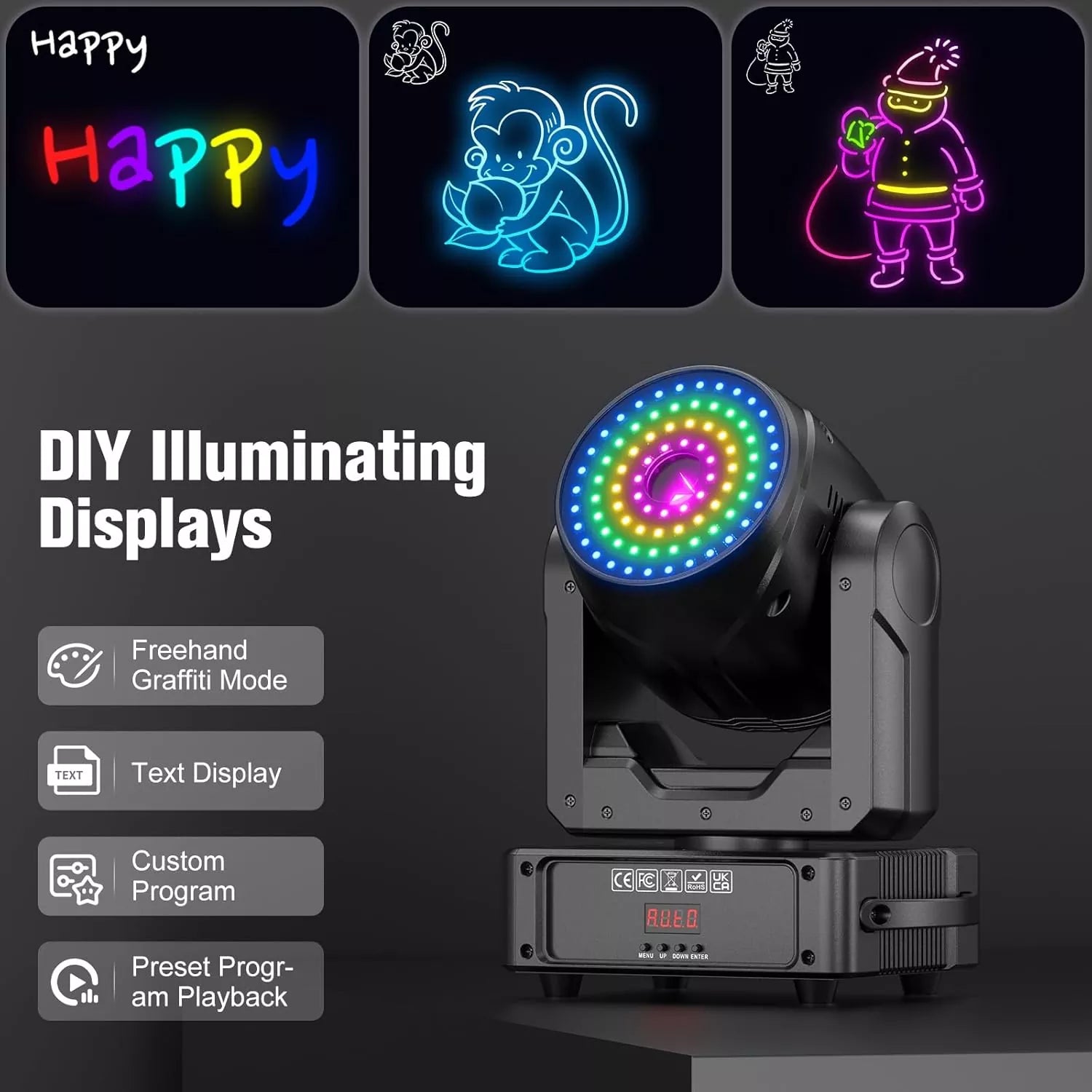

• Smart Bluetooth APP control: Easily customize lighting effects, including manual graffiti, text input (up to 100 characters), logo upload or preset scenes (over 20 sequences). Switch between more than 100 built-in programs to easily design unique animations.

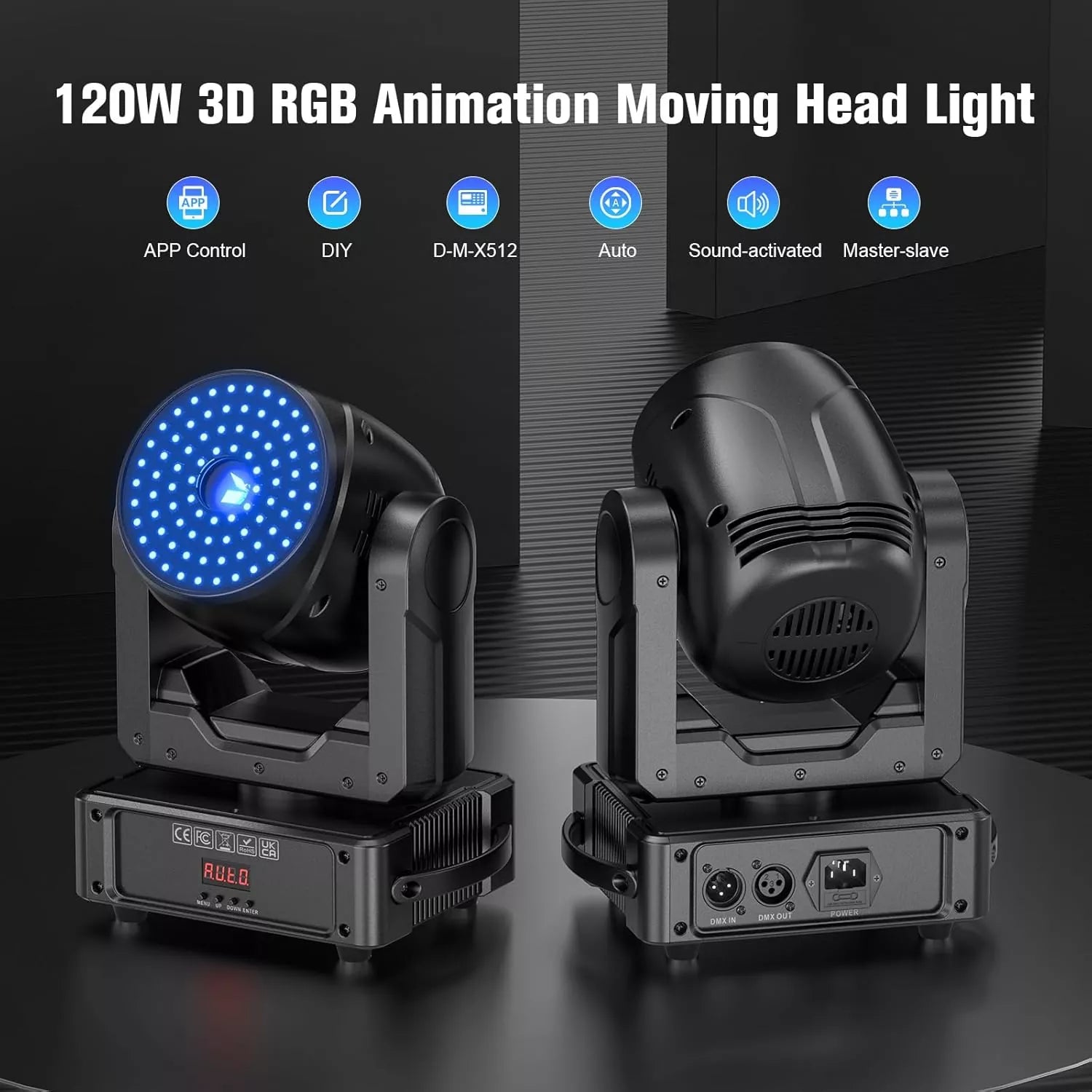

• Multiple control modes: Support DMX512, voice control, self-propelled, master-slave and APP control. Equipped with manual push rods, it can achieve precise adjustment in horizontal (540°) and vertical (270°) with 16-bit micro-stepping accuracy.
• Multi-scene adaptation: Optimized for outdoor activities, Christmas, New Year, clubs and KTV. IP20 protection rating and operation in -20°C to 45°C environments ensures reliability in a variety of environments.
• Compact and portable design: Lightweight and portable, with a stylish plastic housing for easy installation. Included light hook for quick and easy installation - ideal for mobile DJs, event planners and stage designers.

Specifications:

• Model: A32
• Input voltage: AC110V-240V 50/60Hz
• Rated (power) power: 120W
• Light source: 2w full-color laser (red: 350mw: 635nm green: 350mw: 520nm blue: 1.3W: 445nm) + 84 RGB LEDs
• Divergence angle: <1.5mrad
• Modulation mode: TTL modulation
• Beam angle: Max50 °
• Galvanometer speed: 15K
• Laser show: text/pattern/animation/beam/logo/
• Cooling method: air cooling
• Lens reflectivity: >99%
• X-axis: 540 fine-tuning accuracy: 16 bits
• Y-axis: 270 fine-tuning accuracy: 16 bits
• Operation mode: self-propelled, voice control, master-slave, DMX/Bluetooth application
• Control channel: 28CH
• Protocol: Standard DMX512 protocol
• Data connection: Tri-core XLR input/output
• Display: 4-digit digital display
• Protection level: IP20
• Working environment: -20℃-45℃

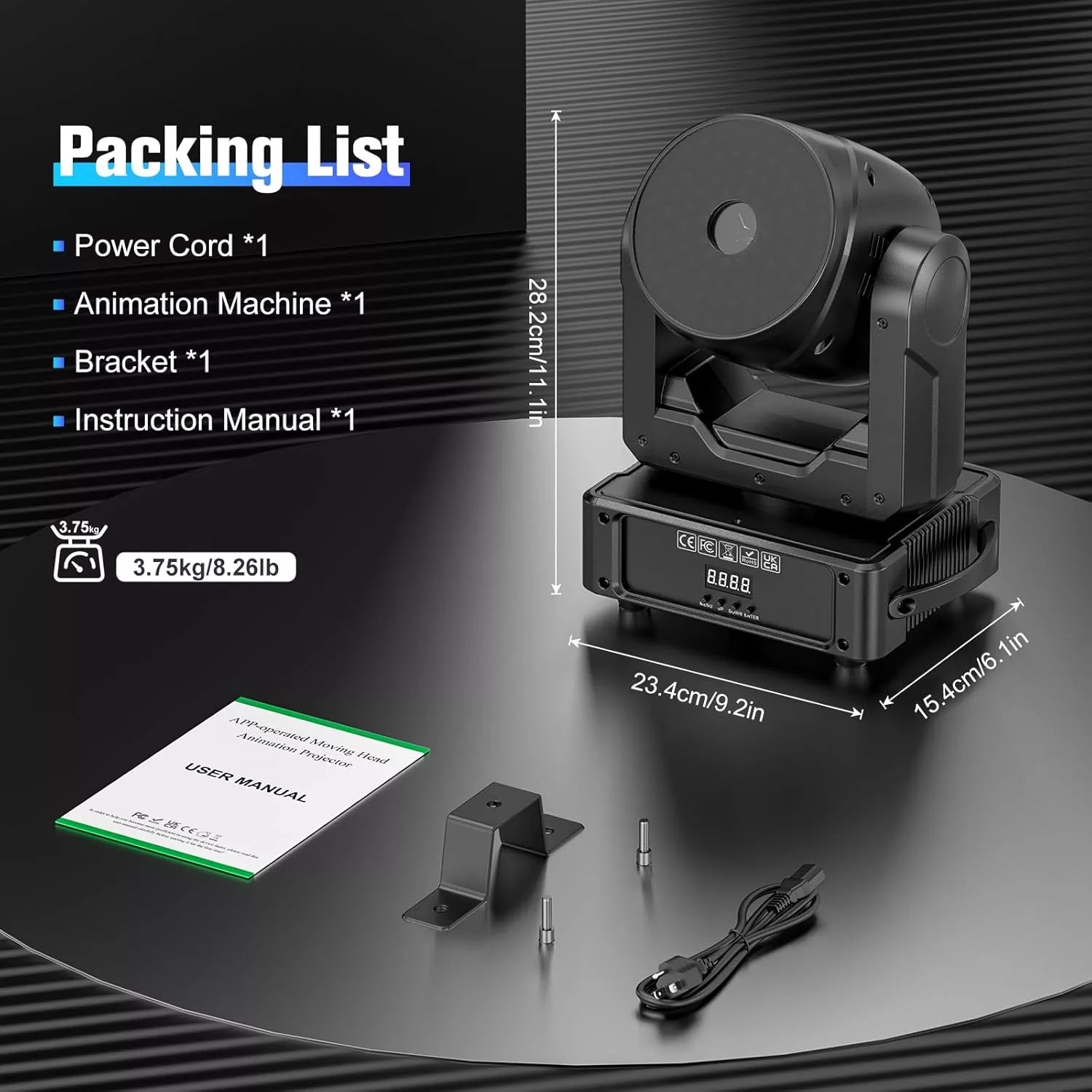

• Product size: 23.4*15.4*28.2cm
• Net weight: 3.75kg

APP function introduction

• 1. Download the APP, APP download address download URL: https://www.lanzouh.com/s/lightelf. (Copy the URL to the mobile browser to download)
• 2. Log in to Google Play Store and search for "LightElf" to install
• 3. Apple APP, search for LightElf in Apple's official App Store to install.

Connect the laser light device.

• 1.Please connect the laser light device to the power supply before use.
• 2.Open the software and click "Click me to connect" on the main interface.
• 3.Select Laser_Light_xxxx in the Bluetooth list.
• 4. Successfully connected to the device.
• 5.The address code, display range and XY related parameters of the laser light device can be set.
• 6. The menu language of the software can bechanged at the bottom.
• 7. The APP operation video can be viewed on our youtube.
